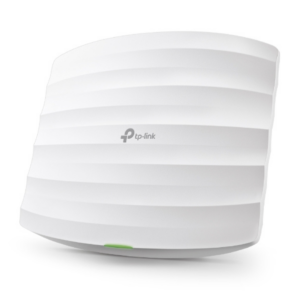

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

• Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.

• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring.

• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.*

• PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter is not included) for flexible installations.

• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

• Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

• HARDWARE FEATURES
  • Interface
    • Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE)
  • Physical Security Lock
    • Yes
  • Button
    • Reset
  • Power Supply
    • 802.3af PoE
    • 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter IS NOT Included)
  • Power Consumption
    • 12.6 W
  • Dimensions ( W x D x H )
    • 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
  • Antenna Type
    • 3 Internal Omni
    • 2.4 GHz: 4 dBi
    • 5 GHz: 5 dBi
  • Mounting
    • Ceiling /Wall Mounting (Kits included)
• WIRELESS FEATURES
  • Coverage
    • 115㎡(1250 ft²)§
  • Wireless Client Capacity
    • 220+**
  • Concurrent Clients
    • 220+**
  • Wireless Standards
    • IEEE 802.11ac/n/g/b/a
  • Frequency
    • 2.4 GHz and 5 GHz
  • Signal Rate
    • 5 GHz: Up to 867 Mbps
    • 2.4 GHz: Up to 450 Mbps
  • Wireless Functions
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Seamless Roaming*
    • Omada Mesh*
    • Band Steering
    • Load Balance
    • MU-MIMO
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
  • Wireless Security
    • Captive Portal Authentication*
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
  • Transmission Power
    • CE:
      • ≤20 dBm (2.4 GHz, EIRP)
      • ≤23 dBm (5 GHz, EIRP)
    • FCC:
      • ≤24 dBm (2.4 GHz)
      • ≤22 dBm (5 GHz)
• MANAGEMENT
  • Omada App
    • Yes
  • Centralized Management
    • Omada Hardware Controller OC300
    • Omada Hardware Controller OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller
  • Cloud Access
    • Yes, through
    • OC300
    • OC200
    • Omada Software Controller
    • Omada Cloud-Based Controller
  • Email Alerts
    • Yes
  • LED ON/OFF Control
    • Yes
  • Management MAC Access Control
    • Yes
  • SNMP
    • v1,v2c
  • System Logging Local/Remote Syslog
    • Local/Remote Syslog
  • SSH
    • Yes
  • Web-based Management
    • HTTP/HTTPS
  • L3 Management
    • Yes
  • Multi-site Management
    • Yes
  • Management VLAN
    • Yes
  • Zero-Touch Provisioning
    • Yes. Requiring the use of Omada Cloud-Based Controller
• OTHERS
  • Certification
    • CE, FCC, RoHS
  • Package Contents
    • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP223
    • Mounting Kits
    • Installation Guide
  • System Requirements
    • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
  • Environment
    • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
