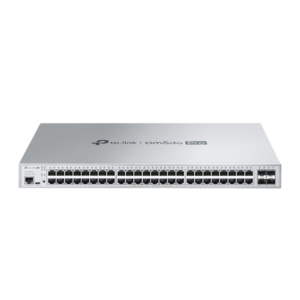

S5500-48GP4XF

Home / Products / S5500-48GP4XF

Highlight Features

Omada Pro 48-Port PoE+ Gigabit L2+ Managed Switch with 4 SFP+ Slots

  • Gigabit PoE+ Output with 500 W PoE Budget: 48× gigabit 802.3at/af-compliant PoE+ ports with a total power supply of 500 W.*
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Integrated into Omada Pro: Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and the Omada App.**
  • Management Flexibility: Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP.
  • Ethernet Ring Protection Switching (ERPS): Blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: ACL, IP-MAC-Port Binding, VLAN Binding, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping.

specification

  • HARDWARE FEATURES
    • Interface
      • 48× 10/100/1000 Mbps RJ45 Ports (all support PoE+)
      • 4× 10G SFP+ Slots
      • 1× RJ45 Console Port
      • 1× Micro-USB Console Port
    • Fan Quantity: 3
    • Power Supply
      • 100~240VAC, 50/60Hz
      • PoE+ Ports: 48 Ports, up to 30 W per port
      • PoE Power Budget: 500 W*
    • Dimensions: 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
    • Mounting: Rack Mountable
    • Max Power Consumption
      • 49.19 W (110V/60Hz) (no PD connected)
      • 635.70 W (110V/60Hz) (with 500 W PD connected)
    • Max Heat Dissipation
      • 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
      • 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
  • PERFORMANCE
    • Switching Capacity: 176 Gbps
    • Packet Forwarding Rate: 130.94 Mpps
    • MAC Address Table: 16 K
    • Packet Buffer Memory: 12 Mbit
    • Jumbo Frame: 9 KB
  • SOFTWARE FEATURES
    • Quality of Service
      • 8 priority queues
      • 802.1p CoS/DSCP priority
      • Queue scheduling: SP, WRR, SP+WRR
      • Bandwidth Control: Port/Flow-based Rating Limiting
    • L3 Features
      • 16 IPv4/IPv6 Interfaces
      • Static Routing: 48 static routes
      • Static ARP: 128 entries
      • DHCP Server & Relay
    • L2 and L2+ Features
      • Link Aggregation: Static, LACP
      • Spanning Tree Protocol: STP, RSTP, MSTP
      • Flow Control: 802.3x
      • Mirroring: Port & CPU Mirroring
  • OTHERS
    • Certification: CE, FCC, RoHS
    • Environment
      • Operating Temperature: 0–40 ℃ (32–104 ℉)
      • Storage Temperature: -40–70 ℃ (-40–158 ℉)
      • Operating Humidity: 10–90% RH non-condensing
    • Package Contents
      • S5500-48GP4XF
      • Power Cord
      • Installation Guide
      • Rackmount Kit
