Highlight Features

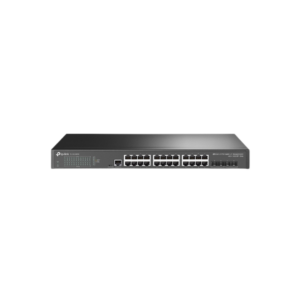

JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Speeds: 24× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

specification

  • HARDWARE FEATURES
    • Interface
      • 24× 10/100/1000 Mbps RJ45 Ports
      • 4× 10G SFP+ Slots
      • 1× RJ45 Console Port
      • 1× Micro-USB Console Port
    • Fan Quantity: Fanless
    • Power Supply: 100-240 V AC~50/60 Hz
    • Dimensions (W x D x H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
    • Mounting: Rack Mountable
    • Max Power Consumption: 23.6 W (110V/60Hz)
    • Max Heat Dissipation: 80.353 BTU/h (110 V/60 Hz)
  • PERFORMANCE
    • Switching Capacity: 128 Gbps
    • Packet Forwarding Rate: 95.23 Mpps
    • MAC Address Table: 16 K
    • Packet Buffer Memory: 12 Mbit
    • Jumbo Frame: 9 KB
  • SOFTWARE FEATURES
    • Quality of Service
      • 8 priority queues
      • 802.1p CoS/DSCP priority
      • Queue scheduling
        • SP (Strict Priority)
        • WRR (Weighted Round Robin)
        • SP+WRR
      • Bandwidth Control
        • Port/Flow based Rating Limiting
      • Smoother Performance
      • Action for Flows
        • Mirror (to supported interface)
        • Redirect (to supported interface)
        • Rate Limit
        • QoS Remark

  • MANAGEMENT
    • Omada App: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    • Centralized Management
      • Omada Cloud-Based Controller
      • Omada Hardware Controller (OC300)
      • Omada Hardware Controller (OC200)
      • Omada Software Controller
    • Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
    • Management Features
      • Web-based GUI
      • Command Line Interface (CLI) through the console port, telnet
      • SNMP v1/v2c/v3
      • Trap/Inform
      • RMON (1,2,3,9 groups)
      • SDM Template
      • DHCP/BOOTP Client
      • 802.1ab LLDP/LLDP-MED
      • DHCP AutoInstall
      • Dual Image, Dual Configuration
      • CPU Monitoring
      • Cable Diagnostics
      • EEE
      • Password Recovery
      • SNTP
      • System Log
  • OTHERS
    • Certification: CE, FCC, RoHS
    • Package Contents
      • TL-SG3428X Switch
      • Power Cord
      • Quick Installation Guide
      • Rackmount Kit
      • Rubber Feet
    • System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX®, or Linux.
    • Environment
      • Operating Temperature: 0–45 ℃ (32–113 ℉)
      • Storage Temperature: -40–70 ℃ (-40–158 ℉)
      • Operating Humidity: 10–90% RH non-condensing
      • Storage Humidity: 5–90% RH non-condensing
