TL-SG3452X

Home / Products / TL-SG3452X

Highlight Features

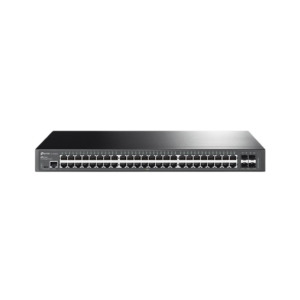

JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Gigabit Speeds: 48× gigabit RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

specification

  • HARDWARE FEATURES
    • Interface
      • 48× 10/100/1000 Mbps RJ45 Ports
      • 4× 10G SFP+ Slots
      • 1× RJ45 Console Port
      • 1× Micro-USB Console Port
    • Fan Quantity: Fanless
    • Power Supply: 100-240 V AC~50/60 Hz
    • Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
    • Mounting: Rack Mountable
    • Max Power Consumption: 32.72 W (110V/60Hz)
    • Max Heat Dissipation: 111.65 BTU/h (110 V/60 Hz)
  • PERFORMANCE
    • Switching Capacity: 176 Gbps
    • Packet Forwarding Rate: 130.9 Mpps
    • MAC Address Table: 16 K
    • Packet Buffer Memory: 12 Mbit
    • Jumbo Frame: 9 KB
  • SOFTWARE FEATURES
    • Quality of Service
      • 8 priority queues
      • 802.1p CoS/DSCP priority
      • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
      • Bandwidth Control: Port/Flow based Rating Limiting
      • Smoother Performance
      • Action for Flows: Mirror (to supported interface), Redirect (to supported interface), Rate Limit, QoS Remark
    • L3 Features
      • 16 IPv4/IPv6 Interfaces
      • Static Routing: 48 static routes
      • Static ARP: 128 Static Entries
      • Proxy ARP
      • Gratuitous ARP
      • DHCP Server
      • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay
    • L2 and L2+ Features
      • Link Aggregation: static link aggregation, 802.3ad LACP, Up to 8 aggregation groups, containing 8 ports per group
      • Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP
      • STP Security: TC Protect, BPDU Filter, Root Protect
      • Loopback Detection: Port based, VLAN based
      • Flow Control: 802.3x Flow Control, HOL Blocking Prevention
      • Mirroring: Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both
    • L2 Multicast
      • IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier
      • IGMP Authentication
      • MLD Snooping: MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier
      • Static Group Config
      • Limited IP Multicast
      • MVR
      • Multicast Filtering: 256 profiles and 16 entries per profile
