Highlight Features

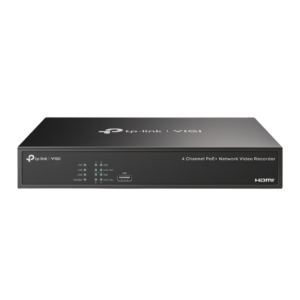

- VIGI 4 Channel PoE+ Network Video Recorder
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
- Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
- Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
specification
- Video and Audio
- IP Video Input: 4-Channel
- Incoming Bandwidth: 80 Mbps
- Outgoing Bandwidth: 60 Mbps
- HDMI Output Resolution:
- 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
- VGA Output Resolution:
- 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
- Video Output Mode: HDMI/VGA Simultaneous Output
- Multi-View Display: Jan 04
- Decoding
- Audio Compression: G.711A/G.711U/G.726
- Decoding Format: H.265+/H.265/ H.264+/H.264
- Video Compression: H.265+/H.265/ H.264+/H.264
- Record Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Live View/Playback Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 4 Channel
- Capability: 2-ch @ 8MP, 4-ch @ 4MP
- Record Management
- Record Mode: Manual Recording, Scheduling Recording, Motion Detection Recording
- Playback Mode: Instant Playback, Regular Playback, Tag Playback, Event Playback
- Backup Mode: Regular Backup, Video Clip Backup
- Playback Function:
- Play, Pause, Stop, Fast Forward, Fast Backward
- Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
- Network
- Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
- Mobile Phone Access: Android, iOS
- Incoming Bandwidth: 80 Mbps
- Outgoing Bandwidth: 60 Mbps
- Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
- Interoperability: ONVIF, CGI
- External Interface
- Network Interface: 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- USB Interface: 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
- Audio Interface: 1-ch RCA Input; 1-ch RCA Output
- Alarm In/Out: N/A
- Serial Interface: N/A
- Power: 1× DC Jack
- Reset Button: 1
- Speaker: N/A
- eSATA: N/A
- HDMI: 1
- VGA: 1
- Hard Disk
- SATA: 1 SATA Interface
- Capacity: Up to 10 TB
- PoE
- Standard: 802.3at/af Compliant
- Interface: 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- PoE Budget: 53 W Available for All PoE+ Ports, 30 W Max per Port
- Alarm
- General Alarm: Motion Detection, Video Tampering, Scene Change Detection, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Loitering Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame
- Anomaly Alarm: Video Loss, Offline and IP Conflict, Disk Exception, Login Exception
- Alarm Linkage: Recording, White Light Alarm, Buzzer, Log, Audible Alarm
- Interfaces
- Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- USB Interface: 2× USB 2.0
- General
- Operating Temperature: -10–55 °C
- Storage Temperature: -40–70 °C
- Storage Humidity: 10%~90% RH Non-Condensing
- Package Contents:
- VIGI Network Video Recorder
- Power Adapter
- HDD Screws
- Mouse
- Quick Installation Guide
- Working Temperature: NVR: -10–55 °C, Power Adapter: 0–40 °C
- Working Humidity: 10%~90% RH Non-Condensing
- Dimensions (W X D X H): 246.2 × 148.2 × 45 mm
- PoE Standard: 802.3af/at
- PoE Ports: Ports 1-4
- PoE Budget: 53 W
- External Power Supply: 53.5V DC/1.31A
- Power Supply: 53.5V DC/1.31A
- Power Consumption: 4.25 W (without disk)
- Certifications: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
- Video/Image
- Video Input: 4-Channel IP Video Input, up to 8MP Resolution
- Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- HDMI Output Resolution:
- 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
- VGA Output Resolution:
- 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1024×768/60Hz, 1280×720/60Hz
