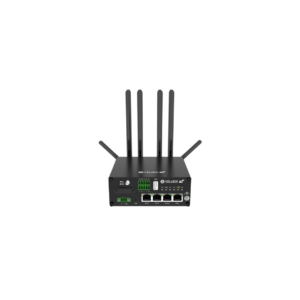

R5020 5G IoT Router

Home / Products /

Highlight Features

The R5020 is Robustel’s first 5G-capable router supporting global 5G, 4G and 3G bands in a compact industrial form factor. It enables rapid deployment of high-speed IoT applications in verticals as diverse as Transportation, Enterprise Connectivity and Digital Signage.

The R5020 leverages the tried-and-tested high performance CPU platform and RobustOS – a mature and stable Operating System developed in-house by Robustel. R5020 is compatible with 3GPP Release 15 and is designed for use by the following applications:

In-vehicle applications: Whether it is passenger WiFi, CCTV debrief, ticketing or a similar “onboard” requirement, the R5020 offers a simple and effective solution to increase internet speeds and future-proof current installations. The R5020 has achieved E-Mark certification for in-vehicle use, and supports GNSS positioning. A version with vehicle ignition sensing is available to protect vehicle batteries when the engine is off.

Broadband Failover: The R5020 can be configured to use Ethernet or Wifi as primary internet and failover to 4G/5G in the event of an outage. This can help to provide resilience to outlets such as shops and small offices at a reasonable cost, and provide sufficient bandwidth for multiple users. IPsec, DMVPN and Open VPN protocols can be used for connections into core networks.

Primary Broadband: Cellular networks can now provide unlimited 5G tariffs at very reasonable prices, offering hundreds of Mbps internet over the air. For many, a chance to cut the cables and use a wireless internet connection can be technically or commercially favourable.

key features

  • Global 5G/4G/3G cellular connections
  • Supports Ethernet, Wifi and 4G/5G internet with auto-failover
  • Very cost-effective industrial 5G router solution
  • Fully programmable Operating System with well documented SDK
  • Multiple VPN options available including DMVPN & IPSEC
  • GNSS, ignition sense & E-mark make R5020 ideal for vehicles
  • Free cloud management platform – RCMS
  • Robust metal enclosure with small footprint – DIN-rail + wall mount options

Specification

  • Cellular Interface
    • Number of antennas: 4 (ANT0 + ANT1 + ANT2 + ANT3)
    • Connector: SMA-K
    • SIM: 2 Mini SIM (2FF)
  • GNSS (Optional, required 4-in-1 Combo Antenna)
    • Number of antennas: 1 (ANT3, Multiplexing cellular antenna interface)
    • Connector: SMA-K
    • GNSS technology: GPS/GLONASS/BeiDou (Compass)/Galileo
    • Horizontal position accuracy: < 2m
  • Ethernet Interface
    • Number of ports: 4 x 10/100/1000 Mbps
    • Default configuration: 4 LAN, configurable as 1 WAN + 3 LAN
    • Support for 802.3at PD feature on ETH0 (optional)
    • Magnet isolation protection: 1 KV
  • Wi-Fi Interface
    • Number of antennas: 2 (Wi-Fi1 + Wi-Fi2)
    • Connector: RP-SMA-K
    • Standards: 802.11b/g/n/ac, 2 x 2 MIMO, supports AP and Client modes
    • Frequency bands:
      • 2.412 – 2.472 GHz (2.4 GHz ISM band)
      • 5.15 – 5.825 GHz (5 GHz ISM band)
    • Security: WPA, WPA2, WEP, WPA3
    • Encryption: AES, TKIP, WEP64
  • Serial Interface
    • Number of ports: 1 x RS232 + 1 x RS485
    • Connector: 2 x 5-pin 3.5 mm female socket
    • Baud rate: 300 bps ~ 115200 bps
    • Signal definition:
      • RS232: TXD, RXD, GND
      • RS485: Data+ (A), Data- (B), Ground (GND)
  • DI/DO
    • Type: 1 x DI + 1 x DO, wet contact
    • Connector: 2 x 5-pin 3.5 mm female socket
    • Isolation: 3.75 KVDC (opto-isolator)
    • Absolute maximum:
      • VDC: “V+” +30 VDC (DI), +30 VDC (DO)
      • ADC: 100 mA (DO)
  • Others
    • Reset button: 1 x RST
    • Expansion: 1 x USB 2.0 Host; 5 V/500 mA
    • LED indicators: 1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WiFi
    • Watchdog: Built-in
  • Software (Basic features of RobustOS)
    • Network protocols: PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, DDNS, etc.
    • VPN tunnel: IPsec, OpenVPN, GRE, WireGuard
    • Firewall: DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
    • Remote management: Web, CLI, SMS
    • Serial port: Transparent, TCP Client/Server, UDP, Modbus RTU to TCP
    • Others: Smart Roaming v2, etc.
  • SDK
    • Supported programming languages: C, C++
    • Flash available for SDK: 5 MB
    • RAM available for SDK: 256 MB
  • App Center (Available Apps for RobustOS)
    • Apps*: L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Dynamic Route, Captive Portal, Modbus Master, TR069
    • *Request on demand. For more Apps please visit www.robustel.com.
  • Power Supply and Consumption
    • Connector: 3-pin 3.5 mm female socket with lock
    • Input voltage: 9 ~ 36 VDC, 42.5 ~ 57V (POE-PD), 10 ~ 30 VDC (ACC)
    • Power consumption:
      • Idle: 520 mA@12 V
      • Data link: 1.8 A (peak) @12 V
  • Physical Characteristics
    • Ingress protection: IP30
    • Housing & Weight: Aluminum, 500 g
    • Dimension: 125 x 100 x 48 mm
    • Installations: Desktop, wall mounting and DIN rail mounting
    • Operating temperature:
      • -20 ~ +55°C (Normal operation)
      • -25 ~ +70°C (Extended operation)
    • Storage temperature: -40 ~ +85°C
    • Relative humidity: 5 ~ 95% RH
  • Regulatory and Type Approvals
    • Environmental: RoHS2.0, WEEE
    • EMI:
      • EN 55032 Conducted Emission Class A
      • EN 55032 Radiated Emission Class A
    • EMS:
      • EN 61000-3-2 (Harmonic Current)
      • EN 61000-3-3 (Voltage Flicker)
      • EN 61000-4-2 (ESD) Contact Level 2, Air Level 3
      • EN 61000-4-3 (RS) Level 2
      • EN 61000-4-4 (EFT) Level 2
      • EN 61000-4-5 (Surge) Line to line Level 3, Line to ground Level 1
      • EN 61000-4-6 (CS) Level 2
      • EN 61000-4-11 (Dips) Class 2
